the fuel minder™ store
Your # 1 Source for remote fuel-level indicators and accessories!
The Fuel Minder Store and Rollie Technology introduce the new Syba Systems Wireless Internet Fuel/Fluid Tank Level Monitor Systems.
The Syba Systems Wireless Internet Fuel/Fluid Tank Monitor provides accurate fuel/fluid levels on the Internet, and via local Display. These systems easily mount on your tank, and communicate tank levels wirelessly every 30 minutes.**
Access your fuel level from any web enabled device, or the local Display - and receive text or email messages triggered by high or low alert levels!
And, the best part is that unlike other systems, you don't need to have Wi-Fi service at the tank with our Hydrostatic Sensor models!
Completely customized to suit your application for Single Tank or Multiple Tank systems utilizing your choice of Ultrasonic or Hydrostatic Sensor technology.
Simple Installation!
No monthly fees!
Wirelessly monitor up to 8 tanks, up to 500 feet away on your local display, or from anywhere via the internet!
**with Heavy Duty Solar Panel powered Tank Monitor, and every 1 minute for the 5-volt Wall-Plug mode. However, 30 minute readings are displayed online.
FEATURES
-
Simple and free web access - NO MONTHLY FEES!
-
Accuracy within 1/4" for Ultrasonic Sensor and resolution to 0.1 inch with Hydrostatic Sensor!
-
Tank depths up to 44'' for Ultrasonic sensor and tank depths up to 10 m (~33 feet) for Hydrostatic Sensor!
-
Ultrasonic Sensors available in 2"NPT or 1 1/2"NPT tank opening sizes
-
Displays are powered by a 9-volt wall plug
-
Monitor is powered by your choice of 5-volt Wall Plug or Heavy Duty Solar Panel
-
Ultrasonic Sensor is powered by your choice of 9-volt Wall Plug or Heavy Duty Solar panel
-
Display shows level in inches, gallons and percent
-
Adjustable high and low level alert via local display or email or text on your web enabled device
-

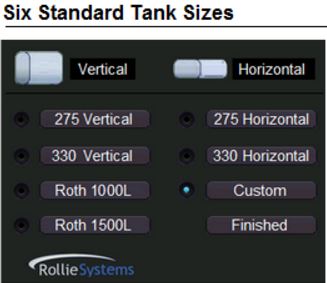

Six(6) standard tank types and two(2) custom tanks to choose from
-
Simple installation and operation - No complicated setup or calibration
-
Single Tank Display monitors single tanks up to 500 ft. away
-

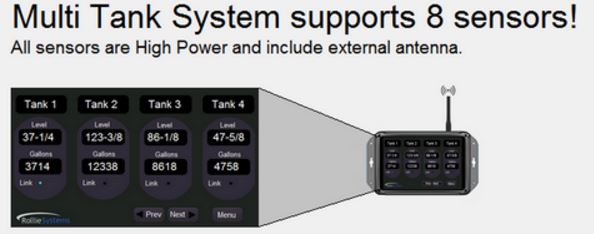

Multi-Tank Display monitors up to 8 tanks up to 500 ft. away
-
Wetted materials for Ultrasonic Sensor: ABS, PVC, Nickel Plated Steel
-
Protection for Ultrasonic Sensor: IP64 Suitable for outdoor use
-
A low cost solution for non-aggressive media such as waste motor and cooking oil, diesel fuel and home heating oil and much more
-
Made in USA
The future of tank monitoring!
System User Manuals
Syba Systems Wireless Internet Fuel/Fluid Tank Level Monitor Systems
Your Tank, Your Data on Any Web Enabled Device
Monitor your tank levels from anywhere. No wires, easy installation, no monthly fee!
Choose whether you want Single Tank or Multiple Tank Displays (up to 8 tanks) for local display of your fuel/fluid tank levels. Either way, you still get all your data on any web enabled device too.

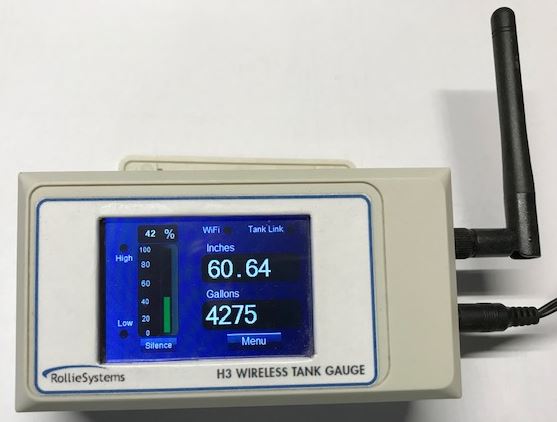

Single Tank and Multi-Tank Displays
Choose from Single Tank Or Multiple Tank Models with Ultrasonic Sensors or Hydrostatic Sensors
The Syba Systems Wireless Internet Fuel/Fluid Tank Monitor Provides Local Display and Remote Monitoring via any Web-Enabled Device

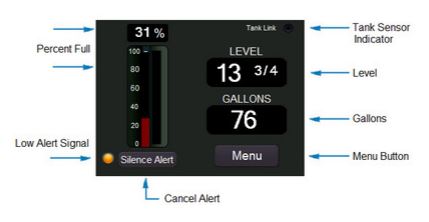

Single or Multi-Tank Display Models Include Easy to Read Display With Touch Screen Menu Functions

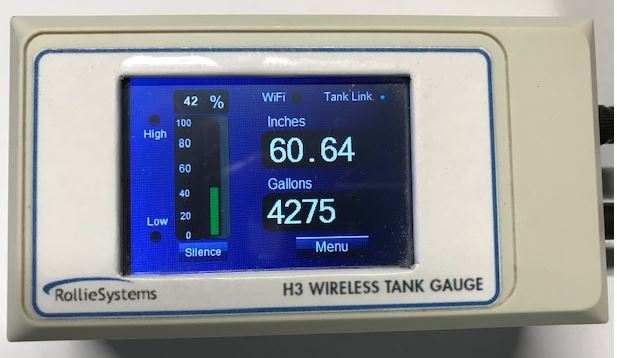

Colorful Display Reads in Percent, Inches and Gallons!
Easily Adjusts to Almost Every Size Tank!
Choose the Type of Tank You Have (comes programmed for 275 gal. vertical tanks)
Note: Other generic 0-5VDC Sensors may be ordered as well, including Magneto Restrictive Sensors, Capacitive Sensors, Temperature Sensors and more.
Got Questions?
Made in USA for Syba Systems LLC by
ORDER INFORMATION

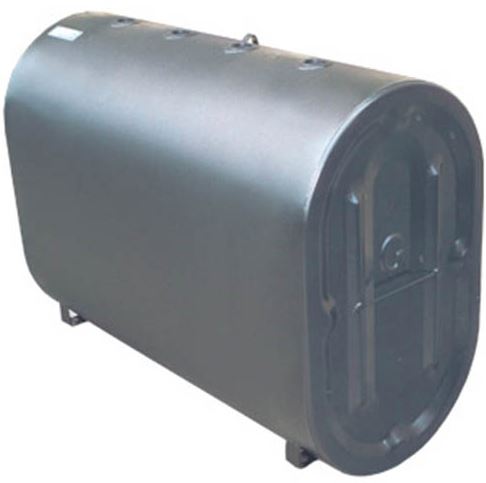

FOR SINGLE TANKS:
Syba Systems Wireless Internet Fuel/Fluid Tank Level Monitor - with SINGLE TANK Display with ULTRASONIC SENSOR
Syba Systems Wireless Internet Fuel/Fluid Tank Level Monitor - with Single Tank Display and Ultrasonic Sensor
SINGLE-TANK SystemProvides both Local Display and Internet Monitoring for Single Tanks
Your choice of 9-volt Wall Plug Power or Heavy Duty Solar Panel Power for your Ultrasonic Tank Sensor
FREE DATA - No Subscription fee! Requires WiFi at the tank Max recommended tank depth - 44 inches ORDER AT THE RIGHT |
Syba Systems Wireless Internet Fuel/Fluid Tank Level Monitor - with Single Tank Display and Ultrasonic Sensor - #WTG1-H3-US
Your Choice of 9-volt Wall Plug or Heavy Duty Solar Panel to power your ULTRASONIC SENSOR:
5-volt Wall Plug or Heavy Duty Solar Panel |
|
Syba Systems Wireless Internet Fuel/Fluid Tank Level Monitor - with SINGLE TANK Display with HYDROSTATIC SENSOR |
||
Syba Systems Wireless Internet Fuel/Fluid Tank Level Monitor - with Single Tank Display and Hydrostatic Sensor |
Syba Systems Wireless Internet Fuel/Fluid Tank Level Monitor - with Single Tank Display and Hydrostatic Sensor BUILD YOUR SINGLE-TANK SYSTEM 1. SINGLE-TANK DISPLAY (only) - (Select the TANK MONITOR and TANK SENSOR below to complete your system) - WTG1.........$189
2. TANK MONITORS come with your choice of power: 5-volt Wall Plug or Heavy Duty Solar Panel
5-volt Wall Plug - or - Heavy Duty Solar Panel 3. Add HYDROSTATIC TANK SENSOR to complete your system
|
|

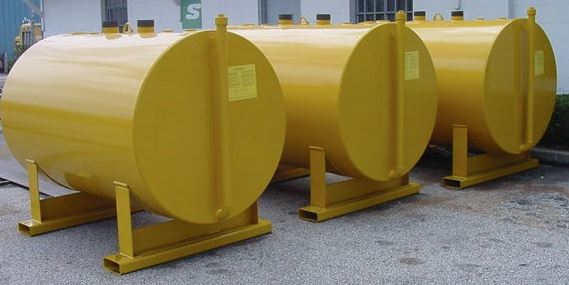

FOR MULTIPLE TANKS:Syba Systems Wireless Internet Fuel/Fluid Tank Level Monitor - with MULTI-TANK Display with ULTRASONIC SENSORS (500' Range) |
||
Syba Systems Wireless Internet Fuel/Fluid Tank Level Monitor - with Multi-Tank Display and Ultrasonic Sensors
MULTI-TANK SystemProvides both Local Display and Internet Monitoring for each tank, up to 8 tanks
Purchase Multi-Tank DISPLAY and ULTRASONIC TANK SENSORS Separately TANK SENSORS can be powered wih either 9- volt Wall Plug or Heavy Duty Solar Panel Requires WiFi at the tank Max recommended tank depth - 44 inches ORDER AT THE RIGHT(NOTE: Multi-Tank Displays can support both Ultrasonic Sensors and Hydrostatic Sensors simultaneously) |
Syba Systems Wireless Internet Fuel/Fluid Tank Level Monitor - Multi-Tank Display and Ultrasonic Tank Sensors BUILD YOUR MULTI-TANK SYSTEM 1. Multi-Tank DISPLAY (only) - (Select ULTRASONIC TANK SENSORS below to complete your system) - WTG8.........$339
2. ULTRASONIC SENSORS come with your choice of power: 9-volt Wall Plug or Heavy Duty Solar Panel (enter number of ULTRASONIC SENSORS when ordering)
5-volt Wall Plug or Heavy Duty Solar Panel |
|
Syba Systems Wireless Internet Fuel/Fluid Tank Level Monitor - with MULTI-TANK Display with HYDROSTATIC SENSORS |
||
Syba Systems Wireless Internet Fuel/Fluid Tank Level Monitor - with Multi-Tank Display and Hydrostatic Sensors
MULTI-TANK SystemProvides both Local Display and Internet Monitoring for each tank, up to 8 tanks BUILD YOUR SYSTEM 1. Start with the Multi-Tank DISPLAY 2. Next, choose TANK MONITOR power type (enter number of TANK MONITORS when ordering) 3. Choose HYDROSTATIC TANK SENSOR Cable Length (enter number HYDROSTATIC TANK SENSORS when ordering) ORDER AT THE RIGHT
MULTI-TANK DISPLAY - TANK MONITORS
HYDROSTATIC SENSORS (Includes flange, bushing, cordgrip for installation) Order Multi-Tank DISPLAY,TANK MONITORS, and HYDROSTATIC TANK SENSORS separately to build your system Max tank depth 10 m ORDER AT THE RIGHT(NOTE: Multi-Tank Displays can support both Ultrasonic Sensors and Hydrostatic Sensors simultaneously) |
Syba Systems Wireless Internet Fuel/Fluid Tank Level Monitor - with Multi-Tank Display and Hydrostatic Tank Sensors BUILD YOUR MULTI-TANK SYSTEM 1. Multi-Tank DISPLAY (only) - (order TANK MONITORS and TANK SENSORS below to complete your system) - WTG8......$339
2. TANK MONITORS - Tank Monitors come with your choice of power: 5-volt Wall Plug or Heavy Duty Solar Panel (enter number of TANK MONITORS when ordering)
Tank Monitor
5-volt Wall Plug or Heavy Duty Solar Panel 3. Add HYDROSTATIC TANK SENSORS to complete your system
|
|
Got Questions? CONTACT US
